tinygltf::TinyGLTF Class Reference

#include <tiny_gltf.h>

Public Member Functions
	TinyGLTF ()
	~TinyGLTF ()
bool	LoadASCIIFromFile (Model *model, std::string *err, std::string *warn, const std::string &filename, unsigned int check_sections=REQUIRE_VERSION)
bool	LoadASCIIFromString (Model *model, std::string *err, std::string *warn, const char *str, const unsigned int length, const std::string &base_dir, unsigned int check_sections=REQUIRE_VERSION)
bool	LoadBinaryFromFile (Model *model, std::string *err, std::string *warn, const std::string &filename, unsigned int check_sections=REQUIRE_VERSION)
bool	LoadBinaryFromMemory (Model *model, std::string *err, std::string *warn, const unsigned char *bytes, const unsigned int length, const std::string &base_dir="", unsigned int check_sections=REQUIRE_VERSION)
bool	WriteGltfSceneToStream (Model *model, std::ostream &stream, bool prettyPrint, bool writeBinary)
bool	WriteGltfSceneToFile (Model *model, const std::string &filename, bool embedImages, bool embedBuffers, bool prettyPrint, bool writeBinary)
void	SetImageLoader (LoadImageDataFunction LoadImageData, void *user_data)
void	RemoveImageLoader ()
void	SetImageWriter (WriteImageDataFunction WriteImageData, void *user_data)
void	SetFsCallbacks (FsCallbacks callbacks)
void	SetSerializeDefaultValues (const bool enabled)
bool	GetSerializeDefaultValues () const
void	SetStoreOriginalJSONForExtrasAndExtensions (const bool enabled)
bool	GetStoreOriginalJSONForExtrasAndExtensions () const
void	SetPreserveImageChannels (bool onoff)
bool	GetPreserveImageChannels () const

Detailed Description

glTF Parser/Serialier context.

Constructor & Destructor Documentation

TinyGLTF()

tinygltf::TinyGLTF::TinyGLTF ( )

inline

~TinyGLTF()

tinygltf::TinyGLTF::~TinyGLTF ( )

inline

Member Function Documentation

GetPreserveImageChannels()

bool tinygltf::TinyGLTF::GetPreserveImageChannels ( ) const

inline

GetSerializeDefaultValues()

bool tinygltf::TinyGLTF::GetSerializeDefaultValues ( ) const

inline

GetStoreOriginalJSONForExtrasAndExtensions()

bool tinygltf::TinyGLTF::GetStoreOriginalJSONForExtrasAndExtensions ( ) const

inline

LoadASCIIFromFile()

bool tinygltf::TinyGLTF::LoadASCIIFromFile	(	Model *	model,
		std::string *	err,
		std::string *	warn,
		const std::string &	filename,
		unsigned int	check_sections = REQUIRE_VERSION )

Loads glTF ASCII asset from a file. Set warning message to warn for example it fails to load asserts. Returns false and set error string to err if there's an error.

LoadASCIIFromString()

bool tinygltf::TinyGLTF::LoadASCIIFromString	(	Model *	model,
		std::string *	err,
		std::string *	warn,
		const char *	str,
		const unsigned int	length,
		const std::string &	base_dir,
		unsigned int	check_sections = REQUIRE_VERSION )

Loads glTF ASCII asset from string(memory). length = strlen(str); Set warning message to warn for example it fails to load asserts. Returns false and set error string to err if there's an error.

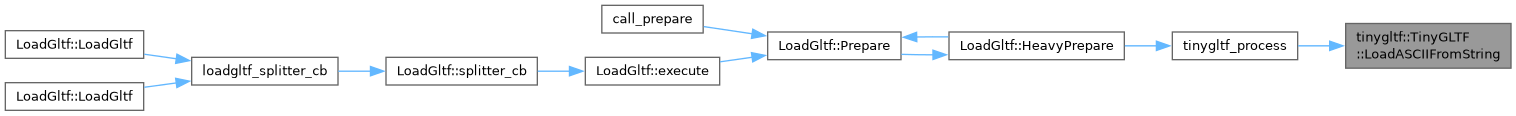

Here is the caller graph for this function:

LoadBinaryFromFile()

bool tinygltf::TinyGLTF::LoadBinaryFromFile	(	Model *	model,
		std::string *	err,
		std::string *	warn,
		const std::string &	filename,
		unsigned int	check_sections = REQUIRE_VERSION )

Loads glTF binary asset from a file. Set warning message to warn for example it fails to load asserts. Returns false and set error string to err if there's an error.

LoadBinaryFromMemory()

bool tinygltf::TinyGLTF::LoadBinaryFromMemory	(	Model *	model,
		std::string *	err,
		std::string *	warn,
		const unsigned char *	bytes,
		const unsigned int	length,
		const std::string &	base_dir = "",
		unsigned int	check_sections = REQUIRE_VERSION )

Loads glTF binary asset from memory. length = strlen(str); Set warning message to warn for example it fails to load asserts. Returns false and set error string to err if there's an error.

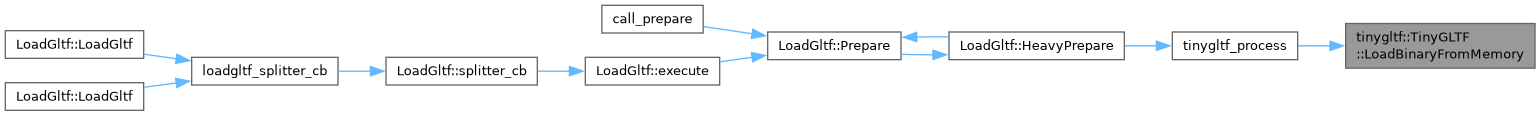

Here is the caller graph for this function:

RemoveImageLoader()

void tinygltf::TinyGLTF::RemoveImageLoader

(

)

Unset(remove) callback of loading image data

SetFsCallbacks()

void tinygltf::TinyGLTF::SetFsCallbacks

(

FsCallbacks

callbacks

)

Set callbacks to use for filesystem (fs) access and their user data

SetImageLoader()

void tinygltf::TinyGLTF::SetImageLoader	(	LoadImageDataFunction	LoadImageData,
		void *	user_data )

Set callback to use for loading image data

SetImageWriter()

void tinygltf::TinyGLTF::SetImageWriter	(	WriteImageDataFunction	WriteImageData,
		void *	user_data )

Set callback to use for writing image data

SetPreserveImageChannels()

void tinygltf::TinyGLTF::SetPreserveImageChannels ( bool onoff )

inline

Specify whether preserve image channales when loading images or not. (Not effective when the user suppy their own LoadImageData callbacks)

SetSerializeDefaultValues()

void tinygltf::TinyGLTF::SetSerializeDefaultValues ( const bool enabled )

inline

Set serializing default values(default = false). When true, default values are force serialized to .glTF. This may be helpfull if you want to serialize a full description of glTF data.

TODO(LTE): Supply parsing option as function arguments to LoadASCIIFromFile() and others, not by a class method

SetStoreOriginalJSONForExtrasAndExtensions()

void tinygltf::TinyGLTF::SetStoreOriginalJSONForExtrasAndExtensions ( const bool enabled )

inline

Store original JSON string for extras and extensions. This feature will be useful when the user want to reconstruct custom data structure from JSON string.

WriteGltfSceneToFile()

bool tinygltf::TinyGLTF::WriteGltfSceneToFile	(	Model *	model,
		const std::string &	filename,
		bool	embedImages,
		bool	embedBuffers,
		bool	prettyPrint,
		bool	writeBinary )

Write glTF to file.

Here is the caller graph for this function:

WriteGltfSceneToStream()

bool tinygltf::TinyGLTF::WriteGltfSceneToStream	(	Model *	model,
		std::ostream &	stream,
		bool	prettyPrint,
		bool	writeBinary )

Write glTF to stream, buffers and images will be embeded

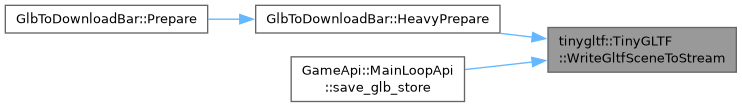

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• tiny_gltf.h
