tinygltf::Accessor Struct Reference

#include <tiny_gltf.h>

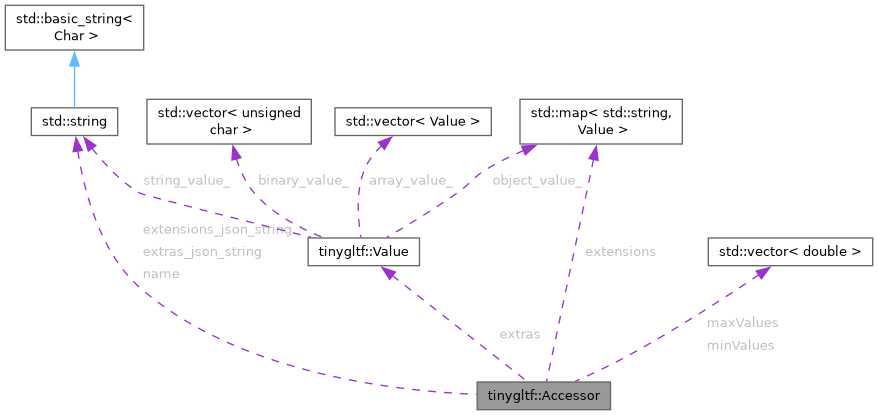

Collaboration diagram for tinygltf::Accessor:

Public Member Functions
int	ByteStride (const BufferView &bufferViewObject) const
	Accessor ()
bool	operator== (const tinygltf::Accessor &) const

Public Attributes
int	bufferView
std::string	name
size_t	byteOffset
bool	normalized
int	componentType
size_t	count
int	type
Value	extras
ExtensionMap	extensions
std::string	extras_json_string
std::string	extensions_json_string
std::vector< double >	minValues
std::vector< double >	maxValues
struct {
int   count
bool   isSparse
struct {
int   byteOffset
int   bufferView
int   componentType
}   indices
struct {
int   bufferView
int   byteOffset
}   values
}	sparse

Constructor & Destructor Documentation

Accessor()

tinygltf::Accessor::Accessor ( )

inline

Here is the caller graph for this function:

Member Function Documentation

ByteStride()

int tinygltf::Accessor::ByteStride ( const BufferView & bufferViewObject ) const

inline

Utility function to compute byteStride for a given bufferView object. Returns -1 upon invalid glTF value or parameter configuration.

operator==()

bool tinygltf::Accessor::operator==

(

const tinygltf::Accessor &

)

const

Member Data Documentation

bufferView

int tinygltf::Accessor::bufferView

byteOffset [1/2]

int tinygltf::Accessor::byteOffset

byteOffset [2/2]

size_t tinygltf::Accessor::byteOffset

componentType

int tinygltf::Accessor::componentType

count [1/2]

int tinygltf::Accessor::count

count [2/2]

size_t tinygltf::Accessor::count

extensions

ExtensionMap tinygltf::Accessor::extensions

extensions_json_string

std::string tinygltf::Accessor::extensions_json_string

extras

Value tinygltf::Accessor::extras

extras_json_string

std::string tinygltf::Accessor::extras_json_string

[struct]

struct { ... } tinygltf::Accessor::indices

isSparse

bool tinygltf::Accessor::isSparse

maxValues

std::vector<double> tinygltf::Accessor::maxValues

minValues

std::vector<double> tinygltf::Accessor::minValues

name

std::string tinygltf::Accessor::name

normalized

bool tinygltf::Accessor::normalized

[struct]

struct { ... } tinygltf::Accessor::sparse

type

int tinygltf::Accessor::type

[struct]

struct { ... } tinygltf::Accessor::values

---

The documentation for this struct was generated from the following file:

• tiny_gltf.h
