draco::AttributesEncoder Class Reference

#include <attributes_encoder.h>

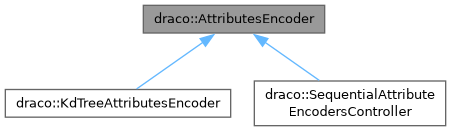

Inheritance diagram for draco::AttributesEncoder:

Public Member Functions
	AttributesEncoder ()
	AttributesEncoder (int point_attrib_id)
virtual	~AttributesEncoder ()=default
virtual bool	Init (PointCloudEncoder *encoder, const PointCloud *pc)
virtual bool	EncodeAttributesEncoderData (EncoderBuffer *out_buffer)
virtual uint8_t	GetUniqueId () const =0
virtual bool	EncodeAttributes (EncoderBuffer *out_buffer)
virtual int	NumParentAttributes (int32_t) const
virtual int	GetParentAttributeId (int32_t, int32_t) const
virtual bool	MarkParentAttribute (int32_t)
virtual const PointAttribute *	GetPortableAttribute (int32_t)
void	AddAttributeId (int32_t id)
void	SetAttributeIds (const std::vector< int32_t > &point_attribute_ids)
int32_t	GetAttributeId (int i) const
uint32_t	num_attributes () const
PointCloudEncoder *	encoder () const

Protected Member Functions
virtual bool	TransformAttributesToPortableFormat ()
virtual bool	EncodePortableAttributes (EncoderBuffer *out_buffer)=0
virtual bool	EncodeDataNeededByPortableTransforms (EncoderBuffer *out_buffer)
int32_t	GetLocalIdForPointAttribute (int32_t point_attribute_id) const

Constructor & Destructor Documentation

AttributesEncoder() [1/2]

draco::AttributesEncoder::AttributesEncoder

(

)

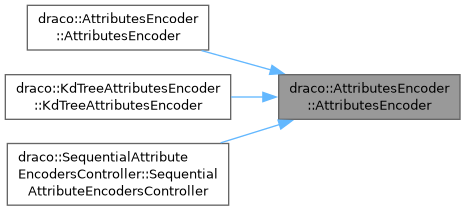

Here is the caller graph for this function:

AttributesEncoder() [2/2]

draco::AttributesEncoder::AttributesEncoder ( int point_attrib_id )

explicit

~AttributesEncoder()

virtual draco::AttributesEncoder::~AttributesEncoder ( )

virtualdefault

Member Function Documentation

AddAttributeId()

void draco::AttributesEncoder::AddAttributeId ( int32_t id )

inline

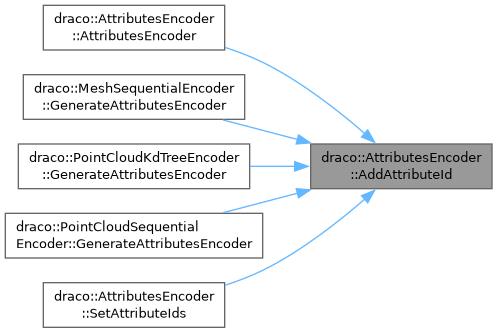

Here is the caller graph for this function:

EncodeAttributes()

virtual bool draco::AttributesEncoder::EncodeAttributes ( EncoderBuffer * out_buffer )

inlinevirtual

Reimplemented in draco::SequentialAttributeEncodersController.

Here is the caller graph for this function:

EncodeAttributesEncoderData()

bool draco::AttributesEncoder::EncodeAttributesEncoderData ( EncoderBuffer * out_buffer )

virtual

Reimplemented in draco::SequentialAttributeEncodersController.

Here is the caller graph for this function:

EncodeDataNeededByPortableTransforms()

virtual bool draco::AttributesEncoder::EncodeDataNeededByPortableTransforms ( EncoderBuffer * out_buffer )

inlineprotectedvirtual

Reimplemented in draco::KdTreeAttributesEncoder, and draco::SequentialAttributeEncodersController.

Here is the caller graph for this function:

EncodePortableAttributes()

virtual bool draco::AttributesEncoder::EncodePortableAttributes ( EncoderBuffer * out_buffer )

protectedpure virtual

Implemented in draco::KdTreeAttributesEncoder, and draco::SequentialAttributeEncodersController.

Here is the caller graph for this function:

encoder()

PointCloudEncoder * draco::AttributesEncoder::encoder ( ) const

inline

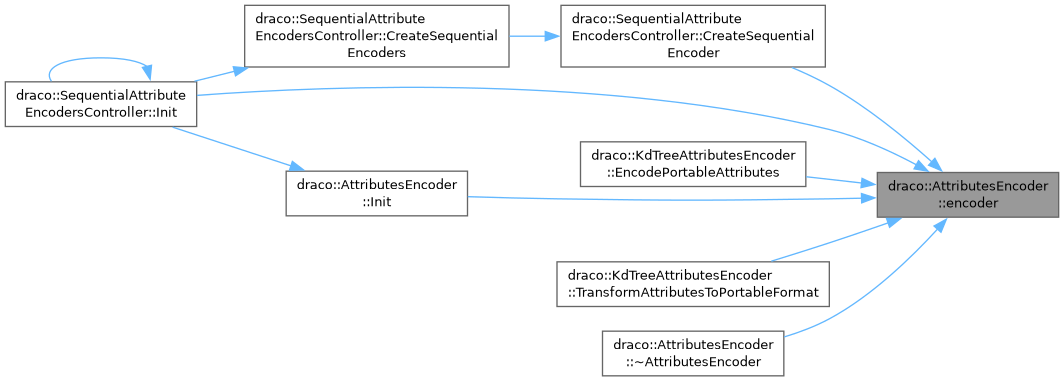

Here is the caller graph for this function:

GetAttributeId()

int32_t draco::AttributesEncoder::GetAttributeId ( int i ) const

inline

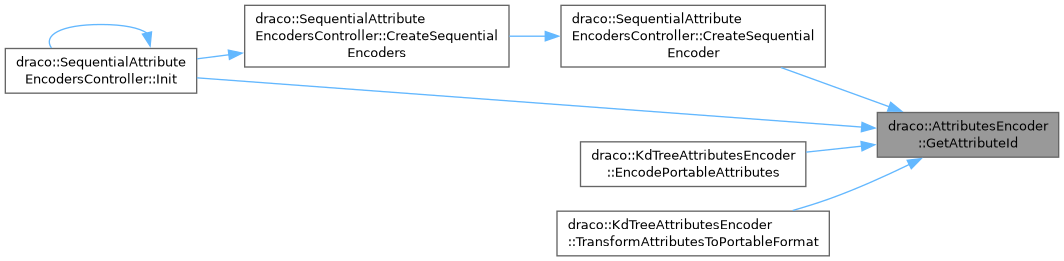

Here is the caller graph for this function:

GetLocalIdForPointAttribute()

int32_t draco::AttributesEncoder::GetLocalIdForPointAttribute ( int32_t point_attribute_id ) const

inlineprotected

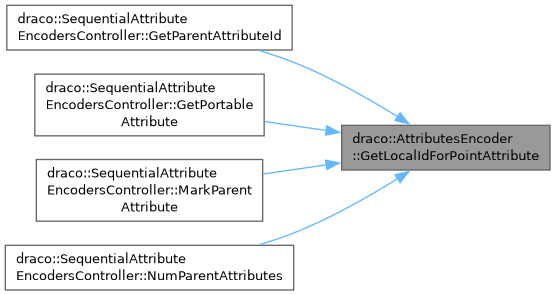

Here is the caller graph for this function:

GetParentAttributeId()

virtual int draco::AttributesEncoder::GetParentAttributeId ( int32_t , int32_t  ) const

inlinevirtual

Reimplemented in draco::SequentialAttributeEncodersController.

GetPortableAttribute()

virtual const PointAttribute * draco::AttributesEncoder::GetPortableAttribute ( int32_t )

inlinevirtual

Reimplemented in draco::SequentialAttributeEncodersController.

GetUniqueId()

virtual uint8_t draco::AttributesEncoder::GetUniqueId ( ) const

pure virtual

Implemented in draco::KdTreeAttributesEncoder, and draco::SequentialAttributeEncodersController.

Init()

bool draco::AttributesEncoder::Init ( PointCloudEncoder * encoder, const PointCloud * pc )

virtual

Reimplemented in draco::SequentialAttributeEncodersController.

Here is the caller graph for this function:

MarkParentAttribute()

virtual bool draco::AttributesEncoder::MarkParentAttribute ( int32_t )

inlinevirtual

Reimplemented in draco::SequentialAttributeEncodersController.

num_attributes()

uint32_t draco::AttributesEncoder::num_attributes ( ) const

inline

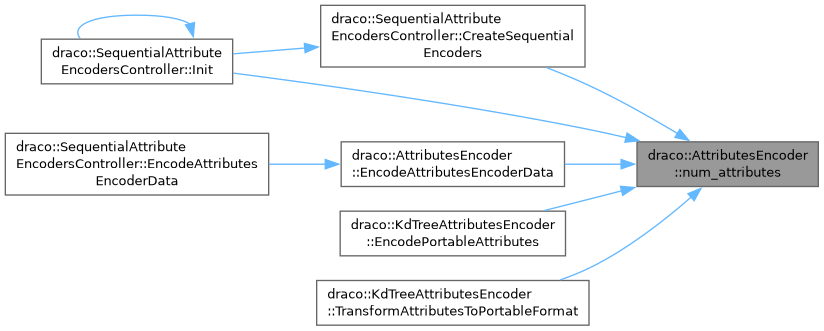

Here is the caller graph for this function:

NumParentAttributes()

virtual int draco::AttributesEncoder::NumParentAttributes ( int32_t ) const

inlinevirtual

Reimplemented in draco::SequentialAttributeEncodersController.

SetAttributeIds()

void draco::AttributesEncoder::SetAttributeIds ( const std::vector< int32_t > & point_attribute_ids )

inline

TransformAttributesToPortableFormat()

virtual bool draco::AttributesEncoder::TransformAttributesToPortableFormat ( )

inlineprotectedvirtual

Reimplemented in draco::KdTreeAttributesEncoder, and draco::SequentialAttributeEncodersController.

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• draco/compression/attributes/attributes_encoder.h
• draco/compression/attributes/attributes_encoder.cc
