draco::MeshPredictionSchemeGeometricNormalPredictorBase< DataTypeT, TransformT, MeshDataT > Class Template Reference

#include <mesh_prediction_scheme_geometric_normal_predictor_base.h>

Inheritance diagram for draco::MeshPredictionSchemeGeometricNormalPredictorBase< DataTypeT, TransformT, MeshDataT >:

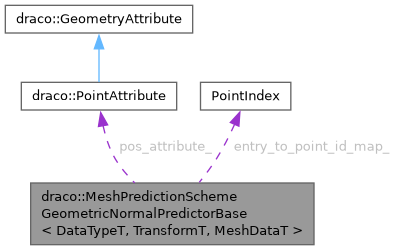

Collaboration diagram for draco::MeshPredictionSchemeGeometricNormalPredictorBase< DataTypeT, TransformT, MeshDataT >:

Public Member Functions
void	SetPositionAttribute (const PointAttribute &position_attribute)
void	SetEntryToPointIdMap (const PointIndex *map)
bool	IsInitialized () const
virtual bool	SetNormalPredictionMode (NormalPredictionMode mode)=0
virtual NormalPredictionMode	GetNormalPredictionMode () const

Protected Member Functions
	MeshPredictionSchemeGeometricNormalPredictorBase (const MeshDataT &md)
virtual	~MeshPredictionSchemeGeometricNormalPredictorBase ()
VectorD< int64_t, 3 >	GetPositionForDataId (int data_id) const
VectorD< int64_t, 3 >	GetPositionForCorner (CornerIndex ci) const
VectorD< int32_t, 2 >	GetOctahedralCoordForDataId (int data_id, const DataTypeT *data) const
virtual void	ComputePredictedValue (CornerIndex corner_id, DataTypeT *prediction)=0

Protected Attributes
const PointAttribute *	pos_attribute_
const PointIndex *	entry_to_point_id_map_
MeshDataT	mesh_data_
NormalPredictionMode	normal_prediction_mode_

Constructor & Destructor Documentation

MeshPredictionSchemeGeometricNormalPredictorBase()

template<typename DataTypeT, class TransformT, class MeshDataT>

draco::MeshPredictionSchemeGeometricNormalPredictorBase< DataTypeT, TransformT, MeshDataT >::MeshPredictionSchemeGeometricNormalPredictorBase ( const MeshDataT & md )

inlineexplicitprotected

~MeshPredictionSchemeGeometricNormalPredictorBase()

template<typename DataTypeT, class TransformT, class MeshDataT>

virtual draco::MeshPredictionSchemeGeometricNormalPredictorBase< DataTypeT, TransformT, MeshDataT >::~MeshPredictionSchemeGeometricNormalPredictorBase ( )

inlineprotectedvirtual

Member Function Documentation

ComputePredictedValue()

template<typename DataTypeT, class TransformT, class MeshDataT>

virtual void draco::MeshPredictionSchemeGeometricNormalPredictorBase< DataTypeT, TransformT, MeshDataT >::ComputePredictedValue ( CornerIndex corner_id, DataTypeT * prediction )

protectedpure virtual

Implemented in draco::MeshPredictionSchemeGeometricNormalPredictorArea< DataTypeT, TransformT, MeshDataT >.

GetNormalPredictionMode()

template<typename DataTypeT, class TransformT, class MeshDataT>

virtual NormalPredictionMode draco::MeshPredictionSchemeGeometricNormalPredictorBase< DataTypeT, TransformT, MeshDataT >::GetNormalPredictionMode ( ) const

inlinevirtual

GetOctahedralCoordForDataId()

template<typename DataTypeT, class TransformT, class MeshDataT>

VectorD< int32_t, 2 > draco::MeshPredictionSchemeGeometricNormalPredictorBase< DataTypeT, TransformT, MeshDataT >::GetOctahedralCoordForDataId ( int data_id, const DataTypeT * data ) const

inlineprotected

GetPositionForCorner()

template<typename DataTypeT, class TransformT, class MeshDataT>

VectorD< int64_t, 3 > draco::MeshPredictionSchemeGeometricNormalPredictorBase< DataTypeT, TransformT, MeshDataT >::GetPositionForCorner ( CornerIndex ci ) const

inlineprotected

Here is the caller graph for this function:

GetPositionForDataId()

template<typename DataTypeT, class TransformT, class MeshDataT>

VectorD< int64_t, 3 > draco::MeshPredictionSchemeGeometricNormalPredictorBase< DataTypeT, TransformT, MeshDataT >::GetPositionForDataId ( int data_id ) const

inlineprotected

Here is the caller graph for this function:

IsInitialized()

template<typename DataTypeT, class TransformT, class MeshDataT>

bool draco::MeshPredictionSchemeGeometricNormalPredictorBase< DataTypeT, TransformT, MeshDataT >::IsInitialized ( ) const

inline

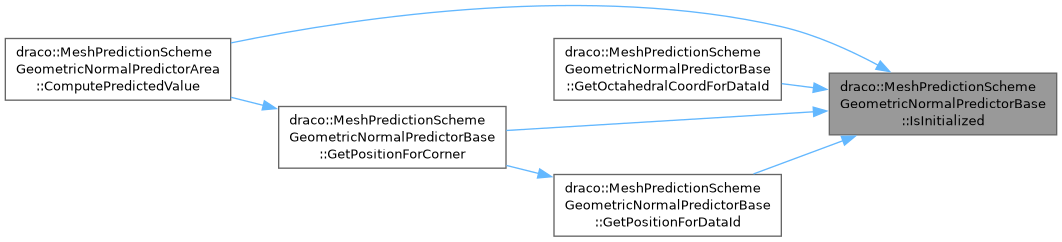

Here is the caller graph for this function:

SetEntryToPointIdMap()

template<typename DataTypeT, class TransformT, class MeshDataT>

void draco::MeshPredictionSchemeGeometricNormalPredictorBase< DataTypeT, TransformT, MeshDataT >::SetEntryToPointIdMap ( const PointIndex * map )

inline

SetNormalPredictionMode()

template<typename DataTypeT, class TransformT, class MeshDataT>

virtual bool draco::MeshPredictionSchemeGeometricNormalPredictorBase< DataTypeT, TransformT, MeshDataT >::SetNormalPredictionMode ( NormalPredictionMode mode )

pure virtual

Implemented in draco::MeshPredictionSchemeGeometricNormalPredictorArea< DataTypeT, TransformT, MeshDataT >.

SetPositionAttribute()

template<typename DataTypeT, class TransformT, class MeshDataT>

void draco::MeshPredictionSchemeGeometricNormalPredictorBase< DataTypeT, TransformT, MeshDataT >::SetPositionAttribute ( const PointAttribute & position_attribute )

inline

Member Data Documentation

entry_to_point_id_map_

template<typename DataTypeT, class TransformT, class MeshDataT>

const PointIndex* draco::MeshPredictionSchemeGeometricNormalPredictorBase< DataTypeT, TransformT, MeshDataT >::entry_to_point_id_map_

protected

mesh_data_

template<typename DataTypeT, class TransformT, class MeshDataT>

MeshDataT draco::MeshPredictionSchemeGeometricNormalPredictorBase< DataTypeT, TransformT, MeshDataT >::mesh_data_

protected

normal_prediction_mode_

template<typename DataTypeT, class TransformT, class MeshDataT>

NormalPredictionMode draco::MeshPredictionSchemeGeometricNormalPredictorBase< DataTypeT, TransformT, MeshDataT >::normal_prediction_mode_

protected

pos_attribute_

template<typename DataTypeT, class TransformT, class MeshDataT>

const PointAttribute* draco::MeshPredictionSchemeGeometricNormalPredictorBase< DataTypeT, TransformT, MeshDataT >::pos_attribute_

protected

---

The documentation for this class was generated from the following file:

• draco/compression/attributes/prediction_schemes/mesh_prediction_scheme_geometric_normal_predictor_base.h
