draco::PredictionSchemeNormalOctahedronCanonicalizedEncodingTransform< DataTypeT > Class Template Reference

#include <prediction_scheme_normal_octahedron_canonicalized_encoding_transform.h>

Inheritance diagram for draco::PredictionSchemeNormalOctahedronCanonicalizedEncodingTransform< DataTypeT >:

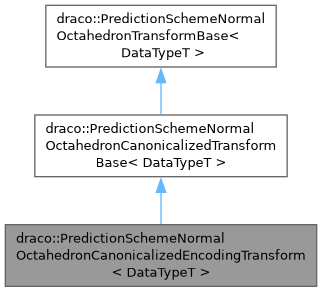

Collaboration diagram for draco::PredictionSchemeNormalOctahedronCanonicalizedEncodingTransform< DataTypeT >:

Public Types
typedef PredictionSchemeNormalOctahedronCanonicalizedTransformBase< DataTypeT >	Base
typedef VectorD< DataTypeT, 2 >	Point2
typedef DataTypeT	CorrType
typedef DataTypeT	DataType
Public Types inherited from draco::PredictionSchemeNormalOctahedronCanonicalizedTransformBase< DataTypeT >
typedef PredictionSchemeNormalOctahedronTransformBase< DataTypeT >	Base
typedef VectorD< DataTypeT, 2 >	Point2
typedef DataTypeT	DataType
Public Types inherited from draco::PredictionSchemeNormalOctahedronTransformBase< DataTypeT >
typedef VectorD< DataTypeT, 2 >	Point2
typedef DataTypeT	DataType

Public Member Functions
	PredictionSchemeNormalOctahedronCanonicalizedEncodingTransform (DataTypeDataType max_quantized_value)
void	Init (const DataTypeT *orig_data, int size, int num_components)
bool	EncodeTransformData (EncoderBuffer *buffer)
void	ComputeCorrection (const DataTypeDataType *orig_vals, const DataTypeDataType *pred_vals, CorrType *out_corr_vals) const
Public Member Functions inherited from draco::PredictionSchemeNormalOctahedronCanonicalizedTransformBase< DataTypeT >
	PredictionSchemeNormalOctahedronCanonicalizedTransformBase ()
	PredictionSchemeNormalOctahedronCanonicalizedTransformBase (DataTypeDataType mod_value)
int32_t	GetRotationCount (Point2 pred) const
Point2	RotatePoint (Point2 p, int32_t rotation_count) const
bool	IsInBottomLeft (const Point2 &p) const
Public Member Functions inherited from draco::PredictionSchemeNormalOctahedronTransformBase< DataTypeT >
	PredictionSchemeNormalOctahedronTransformBase ()
	PredictionSchemeNormalOctahedronTransformBase (DataTypeDataType max_quantized_value)
bool	AreCorrectionsPositive () const
DataTypeT	max_quantized_value () const
DataTypeT	center_value () const
int32_t	quantization_bits () const

Additional Inherited Members
Static Public Member Functions inherited from draco::PredictionSchemeNormalOctahedronCanonicalizedTransformBase< DataTypeT >
static constexpr PredictionSchemeTransformType	GetType ()
Static Public Member Functions inherited from draco::PredictionSchemeNormalOctahedronTransformBase< DataTypeT >
static constexpr PredictionSchemeTransformType	GetType ()
Protected Member Functions inherited from draco::PredictionSchemeNormalOctahedronTransformBase< DataTypeT >
bool	set_max_quantized_value (DataTypeT max_quantized_value)
bool	IsInDiamond (DataTypeT s, DataTypeT t) const
void	InvertDiamond (DataTypeT *s, DataTypeT *t) const
int32_t	ModMax (int32_t x) const
int32_t	MakePositive (int32_t x) const

Member Typedef Documentation

Base

template<typename DataTypeT>

typedef PredictionSchemeNormalOctahedronCanonicalizedTransformBase<DataTypeT> draco::PredictionSchemeNormalOctahedronCanonicalizedEncodingTransform< DataTypeT >::Base

CorrType

template<typename DataTypeT>

typedef DataTypeT draco::PredictionSchemeNormalOctahedronCanonicalizedEncodingTransform< DataTypeT >::CorrType

DataType

template<typename DataTypeT>

typedef DataTypeT draco::PredictionSchemeNormalOctahedronCanonicalizedEncodingTransform< DataTypeT >::DataType

Point2

template<typename DataTypeT>

typedef VectorD<DataTypeT, 2> draco::PredictionSchemeNormalOctahedronCanonicalizedEncodingTransform< DataTypeT >::Point2

Constructor & Destructor Documentation

PredictionSchemeNormalOctahedronCanonicalizedEncodingTransform()

template<typename DataTypeT>

draco::PredictionSchemeNormalOctahedronCanonicalizedEncodingTransform< DataTypeT >::PredictionSchemeNormalOctahedronCanonicalizedEncodingTransform ( DataTypeDataType max_quantized_value )

inlineexplicit

Member Function Documentation

ComputeCorrection()

template<typename DataTypeT>

void draco::PredictionSchemeNormalOctahedronCanonicalizedEncodingTransform< DataTypeT >::ComputeCorrection ( const DataTypeDataType * orig_vals, const DataTypeDataType * pred_vals, CorrType * out_corr_vals ) const

inline

Here is the caller graph for this function:

EncodeTransformData()

template<typename DataTypeT>

bool draco::PredictionSchemeNormalOctahedronCanonicalizedEncodingTransform< DataTypeT >::EncodeTransformData ( EncoderBuffer * buffer )

inline

Init()

template<typename DataTypeT>

void draco::PredictionSchemeNormalOctahedronCanonicalizedEncodingTransform< DataTypeT >::Init ( const DataTypeT * orig_data, int size, int num_components )

inline

---

The documentation for this class was generated from the following file:

• draco/compression/attributes/prediction_schemes/prediction_scheme_normal_octahedron_canonicalized_encoding_transform.h
