draco::SequentialAttributeDecoder Class Reference

#include <sequential_attribute_decoder.h>

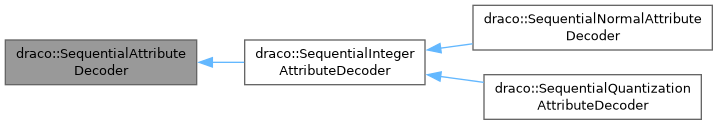

Inheritance diagram for draco::SequentialAttributeDecoder:

Public Member Functions
	SequentialAttributeDecoder ()
virtual	~SequentialAttributeDecoder ()=default
virtual bool	Init (PointCloudDecoder *decoder, int attribute_id)
virtual bool	InitializeStandalone (PointAttribute *attribute)
virtual bool	DecodePortableAttribute (const std::vector< PointIndex > &point_ids, DecoderBuffer *in_buffer)
virtual bool	DecodeDataNeededByPortableTransform (const std::vector< PointIndex > &point_ids, DecoderBuffer *in_buffer)
virtual bool	TransformAttributeToOriginalFormat (const std::vector< PointIndex > &point_ids)
const PointAttribute *	GetPortableAttribute ()
const PointAttribute *	attribute () const
PointAttribute *	attribute ()
int	attribute_id () const
PointCloudDecoder *	decoder () const

Protected Member Functions
virtual bool	InitPredictionScheme (PredictionSchemeInterface *ps)
virtual bool	DecodeValues (const std::vector< PointIndex > &point_ids, DecoderBuffer *in_buffer)
void	SetPortableAttribute (std::unique_ptr< PointAttribute > att)
PointAttribute *	portable_attribute ()

Constructor & Destructor Documentation

SequentialAttributeDecoder()

draco::SequentialAttributeDecoder::SequentialAttributeDecoder

(

)

~SequentialAttributeDecoder()

virtual draco::SequentialAttributeDecoder::~SequentialAttributeDecoder ( )

virtualdefault

Member Function Documentation

attribute() [1/2]

PointAttribute * draco::SequentialAttributeDecoder::attribute ( )

inline

attribute() [2/2]

const PointAttribute * draco::SequentialAttributeDecoder::attribute ( ) const

inline

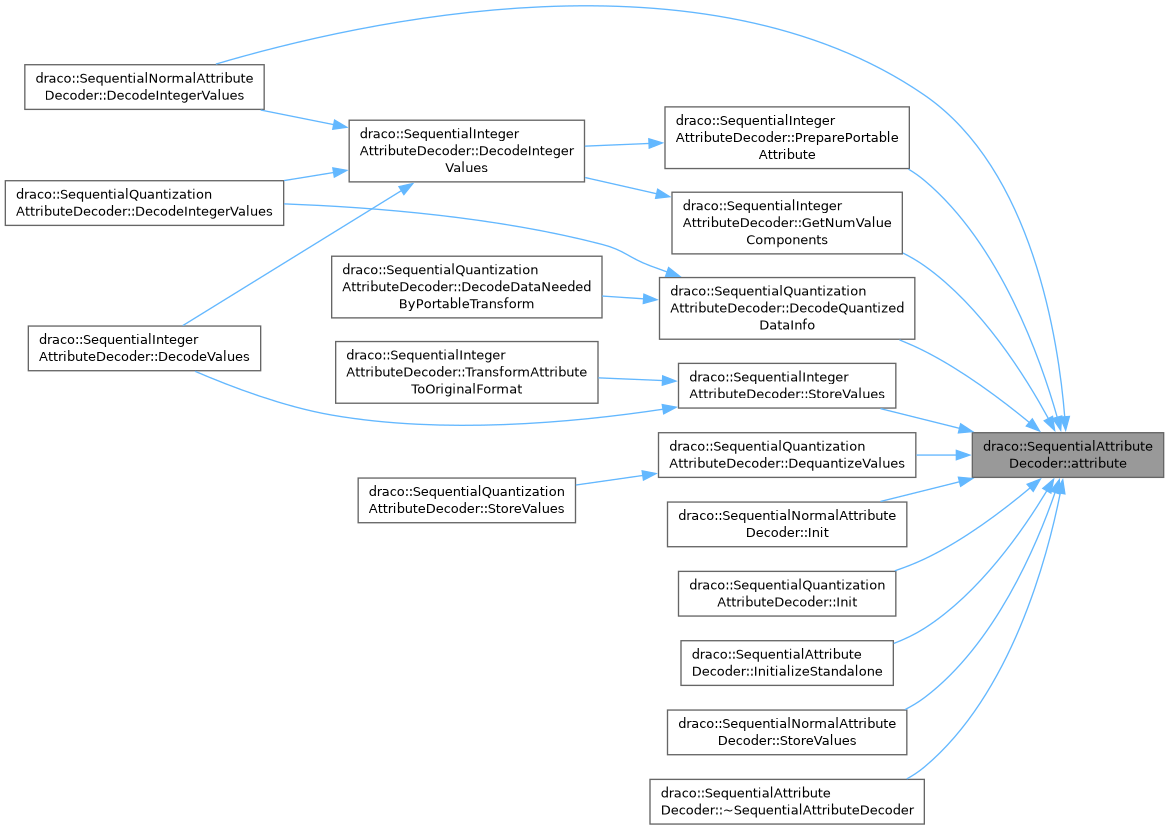

Here is the caller graph for this function:

attribute_id()

int draco::SequentialAttributeDecoder::attribute_id ( ) const

inline

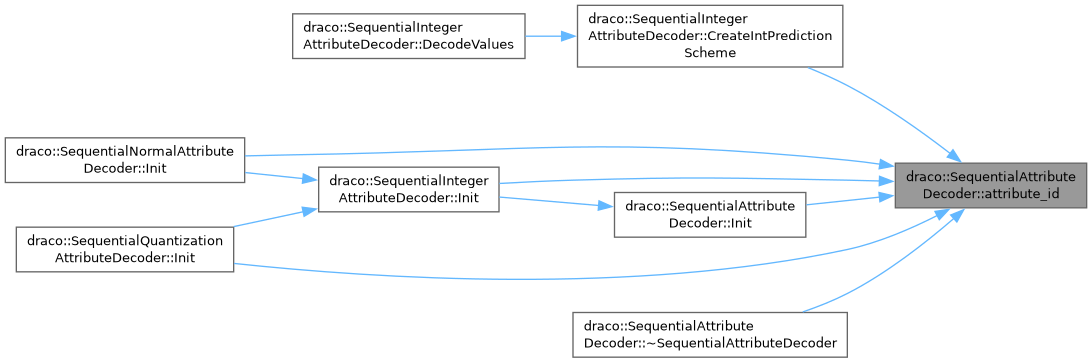

Here is the caller graph for this function:

DecodeDataNeededByPortableTransform()

bool draco::SequentialAttributeDecoder::DecodeDataNeededByPortableTransform ( const std::vector< PointIndex > & point_ids, DecoderBuffer * in_buffer )

virtual

Reimplemented in draco::SequentialNormalAttributeDecoder, and draco::SequentialQuantizationAttributeDecoder.

DecodePortableAttribute()

bool draco::SequentialAttributeDecoder::DecodePortableAttribute ( const std::vector< PointIndex > & point_ids, DecoderBuffer * in_buffer )

virtual

decoder()

PointCloudDecoder * draco::SequentialAttributeDecoder::decoder ( ) const

inline

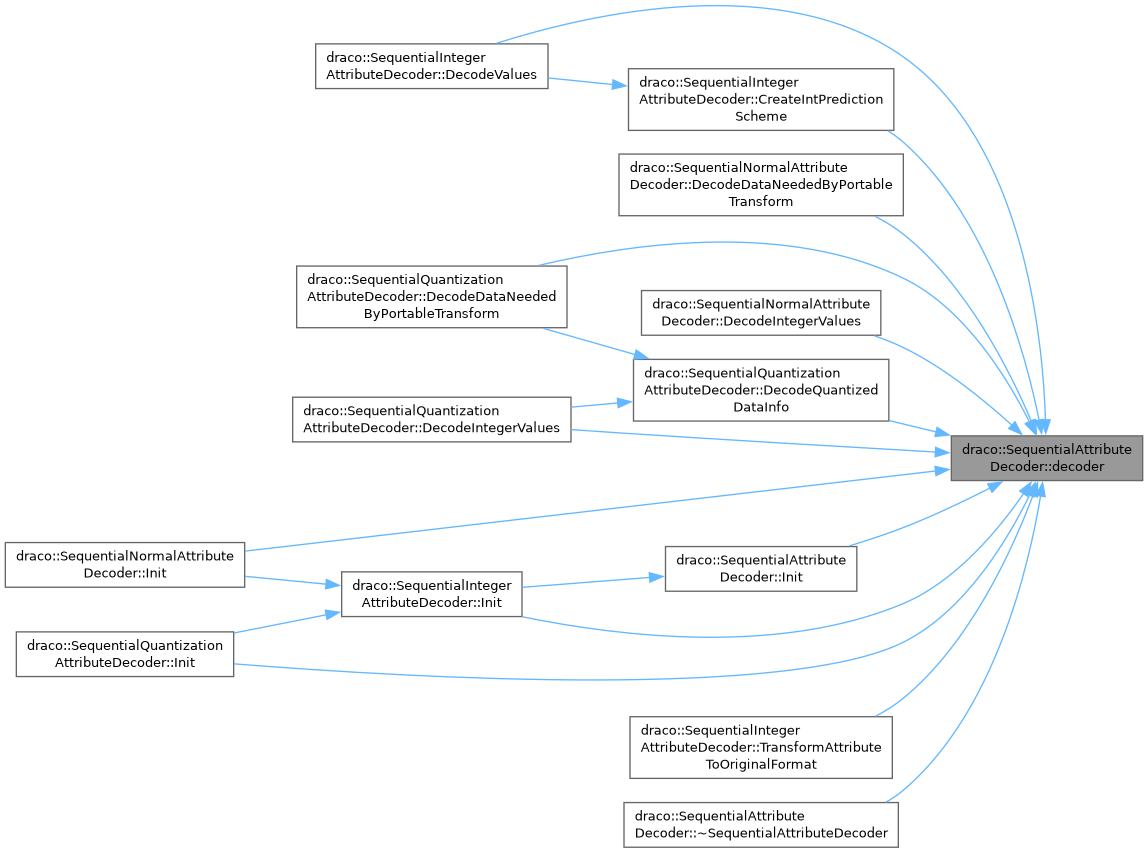

Here is the caller graph for this function:

DecodeValues()

bool draco::SequentialAttributeDecoder::DecodeValues ( const std::vector< PointIndex > & point_ids, DecoderBuffer * in_buffer )

protectedvirtual

Reimplemented in draco::SequentialIntegerAttributeDecoder.

Here is the caller graph for this function:

GetPortableAttribute()

const PointAttribute * draco::SequentialAttributeDecoder::GetPortableAttribute

(

)

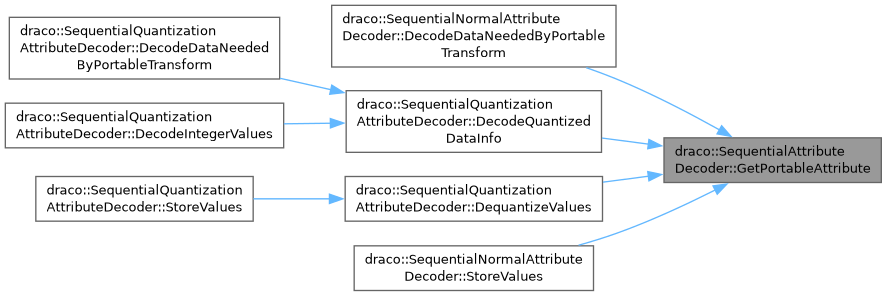

Here is the caller graph for this function:

Init()

bool draco::SequentialAttributeDecoder::Init ( PointCloudDecoder * decoder, int attribute_id )

virtual

Reimplemented in draco::SequentialIntegerAttributeDecoder, draco::SequentialNormalAttributeDecoder, and draco::SequentialQuantizationAttributeDecoder.

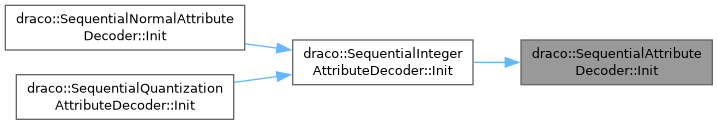

Here is the caller graph for this function:

InitializeStandalone()

bool draco::SequentialAttributeDecoder::InitializeStandalone ( PointAttribute * attribute )

virtual

InitPredictionScheme()

bool draco::SequentialAttributeDecoder::InitPredictionScheme ( PredictionSchemeInterface * ps )

protectedvirtual

Here is the caller graph for this function:

portable_attribute()

PointAttribute * draco::SequentialAttributeDecoder::portable_attribute ( )

inlineprotected

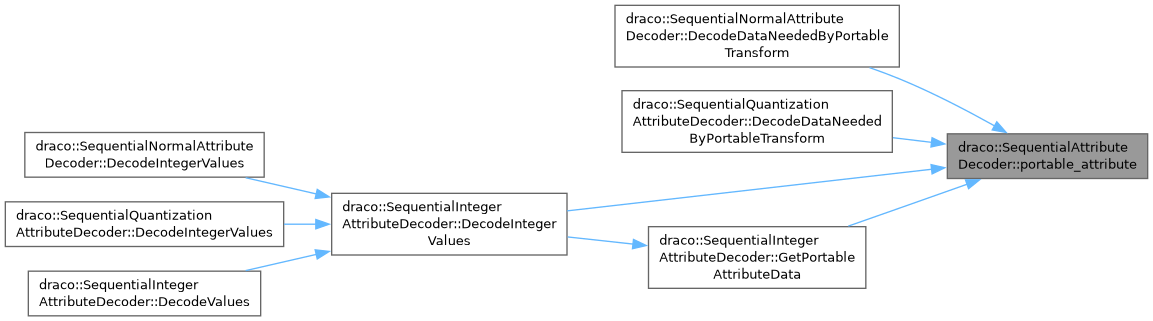

Here is the caller graph for this function:

SetPortableAttribute()

void draco::SequentialAttributeDecoder::SetPortableAttribute ( std::unique_ptr< PointAttribute > att )

inlineprotected

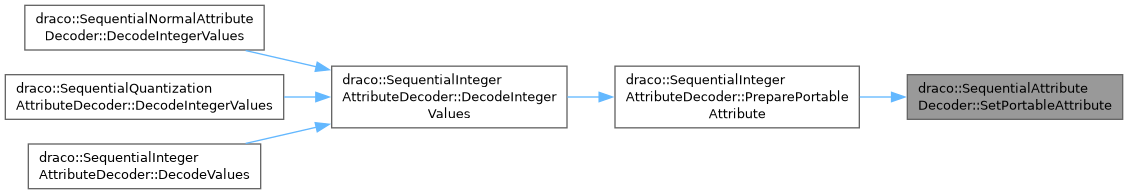

Here is the caller graph for this function:

TransformAttributeToOriginalFormat()

bool draco::SequentialAttributeDecoder::TransformAttributeToOriginalFormat ( const std::vector< PointIndex > & point_ids )

virtual

Reimplemented in draco::SequentialIntegerAttributeDecoder.

---

The documentation for this class was generated from the following files:

• draco/compression/attributes/sequential_attribute_decoder.h
• draco/compression/attributes/sequential_attribute_decoder.cc
