draco::SequentialNormalAttributeEncoder Class Reference

#include <sequential_normal_attribute_encoder.h>

Inheritance diagram for draco::SequentialNormalAttributeEncoder:

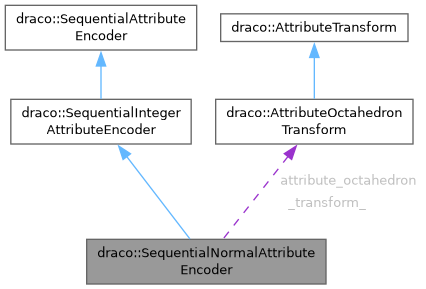

Collaboration diagram for draco::SequentialNormalAttributeEncoder:

Public Member Functions
uint8_t	GetUniqueId () const override
bool	IsLossyEncoder () const override
bool	EncodeDataNeededByPortableTransform (EncoderBuffer *out_buffer) override
Public Member Functions inherited from draco::SequentialIntegerAttributeEncoder
	SequentialIntegerAttributeEncoder ()
bool	TransformAttributeToPortableFormat (const std::vector< PointIndex > &point_ids) override
Public Member Functions inherited from draco::SequentialAttributeEncoder
	SequentialAttributeEncoder ()
virtual	~SequentialAttributeEncoder ()=default
virtual bool	InitializeStandalone (PointAttribute *attribute)
virtual bool	EncodePortableAttribute (const std::vector< PointIndex > &point_ids, EncoderBuffer *out_buffer)
int	NumParentAttributes () const
int	GetParentAttributeId (int i) const
const PointAttribute *	GetPortableAttribute () const
void	MarkParentAttribute ()
const PointAttribute *	attribute () const
int	attribute_id () const
PointCloudEncoder *	encoder () const

Protected Member Functions
bool	Init (PointCloudEncoder *encoder, int attribute_id) override
bool	PrepareValues (const std::vector< PointIndex > &point_ids, int num_points) override
std::unique_ptr< PredictionSchemeTypedEncoderInterface< int32_t > >	CreateIntPredictionScheme (PredictionSchemeMethod) override
Protected Member Functions inherited from draco::SequentialIntegerAttributeEncoder
bool	EncodeValues (const std::vector< PointIndex > &point_ids, EncoderBuffer *out_buffer) override
void	PreparePortableAttribute (int num_entries, int num_components, int num_points)
int32_t *	GetPortableAttributeData ()
Protected Member Functions inherited from draco::SequentialAttributeEncoder
virtual bool	InitPredictionScheme (PredictionSchemeInterface *ps)
virtual bool	SetPredictionSchemeParentAttributes (PredictionSchemeInterface *ps)
bool	is_parent_encoder () const
void	SetPortableAttribute (std::unique_ptr< PointAttribute > att)
PointAttribute *	portable_attribute ()

Protected Attributes
AttributeOctahedronTransform	attribute_octahedron_transform_

Member Function Documentation

CreateIntPredictionScheme()

std::unique_ptr< PredictionSchemeTypedEncoderInterface< int32_t > > draco::SequentialNormalAttributeEncoder::CreateIntPredictionScheme ( PredictionSchemeMethod )

inlineoverrideprotectedvirtual

Reimplemented from draco::SequentialIntegerAttributeEncoder.

EncodeDataNeededByPortableTransform()

bool draco::SequentialNormalAttributeEncoder::EncodeDataNeededByPortableTransform ( EncoderBuffer * out_buffer )

overridevirtual

Reimplemented from draco::SequentialAttributeEncoder.

GetUniqueId()

uint8_t draco::SequentialNormalAttributeEncoder::GetUniqueId ( ) const

inlineoverridevirtual

Reimplemented from draco::SequentialIntegerAttributeEncoder.

Init()

bool draco::SequentialNormalAttributeEncoder::Init ( PointCloudEncoder * encoder, int attribute_id )

overrideprotectedvirtual

Reimplemented from draco::SequentialIntegerAttributeEncoder.

IsLossyEncoder()

bool draco::SequentialNormalAttributeEncoder::IsLossyEncoder ( ) const

inlineoverridevirtual

Reimplemented from draco::SequentialAttributeEncoder.

PrepareValues()

bool draco::SequentialNormalAttributeEncoder::PrepareValues ( const std::vector< PointIndex > & point_ids, int num_points )

overrideprotectedvirtual

Reimplemented from draco::SequentialIntegerAttributeEncoder.

Member Data Documentation

attribute_octahedron_transform_

AttributeOctahedronTransform draco::SequentialNormalAttributeEncoder::attribute_octahedron_transform_

protected

---

The documentation for this class was generated from the following files:

• draco/compression/attributes/sequential_normal_attribute_encoder.h
• draco/compression/attributes/sequential_normal_attribute_encoder.cc
