prerequisites.h File Reference

#include <stdio.h>
#include <stdlib.h>
#include <stdint.h>
#include <stddef.h>

Include dependency graph for prerequisites.h:

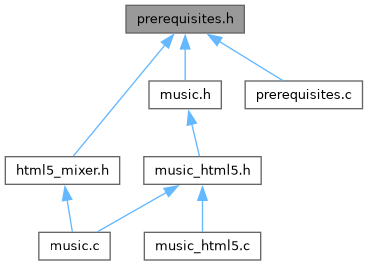

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SDL_RWops
struct	SDL_AudioSpec

Macros
#define	SDL_Error(code)
#define	SDL_SetError(...)
#define	SDL_calloc   calloc
#define	SDL_malloc   malloc
#define	SDL_free   free
#define	Mix_SetError   SDL_SetError
#define	DECLSPEC
#define	SDLCALL
#define	HAVE_STDARG_H   1
#define	HAVE_STDDEF_H   1
#define	HAVE_STDIO_H   1
#define	HAVE_STDINT_H   1
#define	SDL_OutOfMemory()
#define	SDL_RWOPS_UNKNOWN   0U
#define	SDL_RWOPS_STDFILE   2U
#define	SDL_RWOPS_MEMORY   4U
#define	SDL_RWOPS_MEMORY_RO   5U
#define	RW_SEEK_SET   0
#define	RW_SEEK_CUR   1
#define	RW_SEEK_END   2
#define	SDL_RWseek(ctx, offset, whence)
#define	SDL_RWclose(ctx)
#define	fseek_off_t   long
#define	SDL_MIX_MAXVOLUME   (128)
#define	MIX_MAX_VOLUME   SDL_MIX_MAXVOLUME

Typedefs
typedef int8_t	Sint8
typedef uint8_t	Uint8
typedef int16_t	Sint16
typedef uint16_t	Uint16
typedef int32_t	Sint32
typedef uint32_t	Uint32
typedef int64_t	Sint64
typedef uint64_t	Uint64
typedef struct SDL_RWops	SDL_RWops
typedef Uint16	SDL_AudioFormat
	Audio format flags.
typedef void(SDLCALL *	SDL_AudioCallback) (void *userdata, Uint8 *stream, int len)
typedef struct SDL_AudioSpec	SDL_AudioSpec
typedef struct _Mix_Music	Mix_Music

Enumerations
enum	SDL_errorcode {   SDL_ENOMEM , SDL_EFREAD , SDL_EFWRITE , SDL_EFSEEK ,   SDL_UNSUPPORTED , SDL_LASTERROR }
enum	SDL_bool { SDL_FALSE = 0 , SDL_TRUE = 1 }
enum	Mix_Fading { MIX_NO_FADING , MIX_FADING_OUT , MIX_FADING_IN }
enum	Mix_MusicType {   MUS_NONE , MUS_HTML5 , MUS_CMD , MUS_WAV ,   MUS_MOD , MUS_MID , MUS_OGG , MUS_MP3 ,   MUS_MP3_MAD_UNUSED , MUS_FLAC , MUS_MODPLUG_UNUSED }

Functions
DECLSPEC SDL_RWops *SDLCALL	SDL_RWFromFile (const char *file, const char *mode)
DECLSPEC SDL_RWops *SDLCALL	SDL_RWFromFP (FILE *fp, SDL_bool autoclose)
DECLSPEC SDL_RWops *SDLCALL	SDL_AllocRW (void)
DECLSPEC void SDLCALL	SDL_FreeRW (SDL_RWops *area)

Macro Definition Documentation

DECLSPEC

#define DECLSPEC

fseek_off_t

#define fseek_off_t   long

HAVE_STDARG_H

#define HAVE_STDARG_H   1

HAVE_STDDEF_H

#define HAVE_STDDEF_H   1

HAVE_STDINT_H

#define HAVE_STDINT_H   1

HAVE_STDIO_H

#define HAVE_STDIO_H   1

MIX_MAX_VOLUME

#define MIX_MAX_VOLUME   SDL_MIX_MAXVOLUME

Mix_SetError

#define Mix_SetError   SDL_SetError

RW_SEEK_CUR

#define RW_SEEK_CUR   1

Seek relative to current read point

RW_SEEK_END

#define RW_SEEK_END   2

Seek relative to the end of data

RW_SEEK_SET

#define RW_SEEK_SET   0

Seek from the beginning of data

SDL_calloc

#define SDL_calloc   calloc

SDL_Error

#define SDL_Error

(

code

)

Value:

fprintf(stdout, "SDL Error: %d\n", code)

SDL_free

#define SDL_free   free

SDL_malloc

#define SDL_malloc   malloc

SDL_MIX_MAXVOLUME

#define SDL_MIX_MAXVOLUME   (128)

SDL_OutOfMemory

#define SDL_OutOfMemory

(

)

Value:

SDL_Error(SDL_ENOMEM)

SDL_RWclose

#define SDL_RWclose

(

ctx

)

Value:

(ctx)->close(ctx)

SDL_RWOPS_MEMORY

#define SDL_RWOPS_MEMORY   4U

Memory stream

SDL_RWOPS_MEMORY_RO

#define SDL_RWOPS_MEMORY_RO   5U

Read-Only memory stream

SDL_RWOPS_STDFILE

#define SDL_RWOPS_STDFILE   2U

Stdio file

SDL_RWOPS_UNKNOWN

#define SDL_RWOPS_UNKNOWN   0U

Unknown stream type

SDL_RWseek

#define SDL_RWseek	(		ctx,
			offset,
			whence )

Value:

(ctx)->seek(ctx, offset, whence)

Seek to offset relative to whence, one of stdio's whence values: RW_SEEK_SET, RW_SEEK_CUR, RW_SEEK_END

Returns

the final offset in the data stream, or -1 on error.

SDL_SetError

#define SDL_SetError

(

...

)

Value:

{fprintf(stdout, __VA_ARGS__); fprintf(stdout, "\n");}

SDLCALL

#define SDLCALL

Typedef Documentation

Mix_Music

typedef struct _Mix_Music Mix_Music

SDL_AudioCallback

typedef void(SDLCALL * SDL_AudioCallback) (void *userdata, Uint8 *stream, int len)

This function is called when the audio device needs more data.

Parameters

userdata	An application-specific parameter saved in the SDL_AudioSpec structure
stream	A pointer to the audio data buffer.
len	The length of that buffer in bytes.

Once the callback returns, the buffer will no longer be valid. Stereo samples are stored in a LRLRLR ordering.

You can choose to avoid callbacks and use SDL_QueueAudio() instead, if you like. Just open your audio device with a NULL callback.

SDL_AudioFormat

typedef Uint16 SDL_AudioFormat

Audio format flags.

These are what the 16 bits in SDL_AudioFormat currently mean... (Unspecified bits are always zero).

++-----------------------sample is signed if set
||
||       ++-----------sample is bigendian if set
||       ||
||       ||          ++---sample is float if set
||       ||          ||
||       ||          || +---sample bit size---+
||       ||          || |                     |
15 14 13 12 11 10 09 08 07 06 05 04 03 02 01 00

There are macros in SDL 2.0 and later to query these bits.

SDL_AudioSpec

typedef struct SDL_AudioSpec SDL_AudioSpec

SDL_RWops

typedef struct SDL_RWops SDL_RWops

Sint16

typedef int16_t Sint16

Sint32

typedef int32_t Sint32

Sint64

typedef int64_t Sint64

Sint8

typedef int8_t Sint8

Uint16

typedef uint16_t Uint16

Uint32

typedef uint32_t Uint32

Uint64

typedef uint64_t Uint64

Uint8

typedef uint8_t Uint8

Enumeration Type Documentation

Mix_Fading

enum Mix_Fading

Enumerator
MIX_NO_FADING
MIX_FADING_OUT
MIX_FADING_IN

Mix_MusicType

enum Mix_MusicType

Enumerator
MUS_NONE
MUS_HTML5
MUS_CMD
MUS_WAV
MUS_MOD
MUS_MID
MUS_OGG
MUS_MP3
MUS_MP3_MAD_UNUSED
MUS_FLAC
MUS_MODPLUG_UNUSED

SDL_bool

enum SDL_bool

Enumerator
SDL_FALSE
SDL_TRUE

SDL_errorcode

enum SDL_errorcode

Enumerator
SDL_ENOMEM
SDL_EFREAD
SDL_EFWRITE
SDL_EFSEEK
SDL_UNSUPPORTED
SDL_LASTERROR

Function Documentation

SDL_AllocRW()

DECLSPEC SDL_RWops *SDLCALL SDL_AllocRW ( void )

extern

SDL_FreeRW()

DECLSPEC void SDLCALL SDL_FreeRW ( SDL_RWops * area )

extern

SDL_RWFromFile()

DECLSPEC SDL_RWops *SDLCALL SDL_RWFromFile ( const char * file, const char * mode )

extern

Here is the caller graph for this function:

SDL_RWFromFP()

DECLSPEC SDL_RWops *SDLCALL SDL_RWFromFP ( FILE * fp, SDL_bool autoclose )

extern
