FrmWidget Class Reference

#include <GraphI.hh>

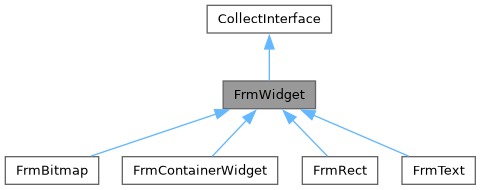

Inheritance diagram for FrmWidget:

Collaboration diagram for FrmWidget:

Public Member Functions
	FrmWidget ()
virtual	~FrmWidget ()
virtual void	Prepare ()=0
virtual void	handle_event (FrameLoopEvent &e)=0
virtual void	frame (DrawLoopEnv &e)=0
virtual void	set_pos (int x_, int y_)
virtual void	set_size (int w_, int h_)
virtual void	set_label (std::string s)
int	pos_x () const
int	pos_y () const
int	size_w () const
int	size_h () const
Public Member Functions inherited from CollectInterface
virtual	~CollectInterface ()
virtual void	Collect (CollectVisitor &vis)=0
virtual int	NumBlocks () const
virtual void	HeavyPrepare ()=0
virtual void	FirstFrame ()

Public Attributes
int	x
int	y
int	w
int	h

Constructor & Destructor Documentation

FrmWidget()

FrmWidget::FrmWidget ( )

inline

~FrmWidget()

virtual FrmWidget::~FrmWidget ( )

inlinevirtual

Member Function Documentation

frame()

virtual void FrmWidget::frame ( DrawLoopEnv & e )

pure virtual

Implemented in FrmBitmap, FrmContainerWidget, FrmRect, and FrmText.

handle_event()

virtual void FrmWidget::handle_event ( FrameLoopEvent & e )

pure virtual

Implemented in FrmBitmap, FrmContainerWidget, FrmRect, and FrmText.

pos_x()

int FrmWidget::pos_x ( ) const

inline

pos_y()

int FrmWidget::pos_y ( ) const

inline

Prepare()

virtual void FrmWidget::Prepare ( )

pure virtual

Implemented in FrmBitmap, FrmContainerWidget, FrmRect, and FrmText.

set_label()

virtual void FrmWidget::set_label ( std::string s )

inlinevirtual

Reimplemented in FrmText.

set_pos()

virtual void FrmWidget::set_pos ( int x_, int y_ )

inlinevirtual

Reimplemented in FrmBitmap, and FrmContainerWidget.

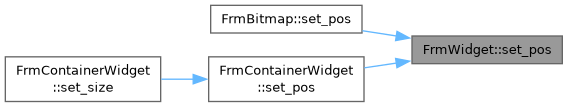

Here is the caller graph for this function:

set_size()

virtual void FrmWidget::set_size ( int w_, int h_ )

inlinevirtual

Reimplemented in FrmBitmap, and FrmContainerWidget.

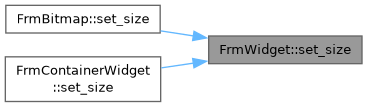

Here is the caller graph for this function:

size_h()

int FrmWidget::size_h ( ) const

inline

size_w()

int FrmWidget::size_w ( ) const

inline

Member Data Documentation

h

int FrmWidget::h

w

int FrmWidget::w

x

int FrmWidget::x

y

int FrmWidget::y

---

The documentation for this class was generated from the following file:

• GraphI.hh
