ForwardFaceCollection Class Reference

#include <Effect.hh>

Inherits FaceCollection.

Inherited by AmbientOcculsion, AnimFaceCollection, BuildOffsets, ChangePoints, ChangePoints2, ChangePos, ChooseTex, ColorAlpha, ColorDistance3, ColorElem2, ColorFromNormals, ColorFromTexcoord, ColorGrayScale, ColorRangeFaceCollection, CombineTextures, CutFaces, DeformFaceCollection, FaceCollectionCutter, FilterInvisible, FixVertexOrder, FlipNormals, FlipPolygonOrder, GradientColor, HeightField_p, InterpolateMeshPair, InverseOutlineFaces, Lambert, LodChoose, LodSet, MatrixElem, MatrixElem44, MaxColorFaceColl, MemoizeFaces, MeshResize, MinColorFaceColl, MixColorFaceColl, MixMesh, MultiplyFaceCollection, NoBatchMap, NormalDarkness, NormalFaceCollection, NormalToTexCoord, NormalVectorVolumeFaceColl, PublishFaceCount, QuadsToTris2, RecalculateNormals, ReflectFaceCollection, ReplaceTexture, ResizeFaceCollection, ResizeFaceCollection_g, ShadowFaceCollection, ShadowMap, SmoothNormals, SmoothNormals2, SphNormals, SphericalWave, SplitQuads, TexCoordFromNormal, TexCoordFromNormal2, TexCoordManual, TexCoordPlane, TexCoordQuadFaceCollection, TexCoordSpherical, TexCoordSpherical2, TexCoord_subarea, TexFaceCollection, TextureStorage, ToonOutlineFaceCollection, TowardsNormal, TransFaceCollection, XSplit, YSplit, and ZSplit.

Collaboration diagram for ForwardFaceCollection:

Public Member Functions
	ForwardFaceCollection (FaceCollection &coll)
BBOX	GetBoundingBox (bool &success) const
void	Collect (CollectVisitor &vis)
void	HeavyPrepare ()
virtual bool	Ready () const
virtual bool	IsTransparent () const
virtual void	Prepare ()
virtual void	SetDoneCount (int i)
virtual void	PrepareDone ()
virtual int	NumFaces () const
virtual int	NumPoints (int face) const
virtual Point	FacePoint (int face, int point) const
virtual Point	EndFacePoint (int face, int point) const
virtual Vector	PointNormal (int face, int point) const
virtual float	Attrib (int face, int point, int id) const
virtual int	AttribI (int face, int point, int id) const
virtual unsigned int	Color (int face, int point) const
virtual Point2d	TexCoord (int face, int point) const
virtual float	TexCoord3 (int face, int point) const
virtual VEC4	Joints (int face, int point) const
virtual VEC4	Weights (int face, int point) const
virtual bool	has_normal () const
virtual bool	has_attrib () const
virtual bool	has_color () const
virtual bool	has_texcoord () const
virtual bool	has_skeleton () const
virtual int	NumObjects () const
virtual std::pair< int, int >	GetObject (int o) const
virtual int	NumTextures () const
virtual void	GenTexture (int num)
virtual BufferRef	TextureBuf (int num) const
virtual int	FaceTexture (int face) const
Public Member Functions inherited from FaceCollection
virtual	~FaceCollection ()
virtual std::string	name () const =0
virtual bool	ReadyToPrepare () const
virtual float	LightAmount (int face, int point) const
virtual Vector	EndPointNormal (int face, int point) const
virtual float	EndAttrib (int face, int point, int id) const
virtual int	EndAttribI (int face, int point, int id) const
virtual unsigned int	EndColor (int face, int point) const
virtual Point2d	EndTexCoord (int face, int point) const
virtual float	EndTexCoord3 (int face, int point) const
virtual float	StartTime () const
virtual float	Duration () const
virtual bool	IsMatrixElem () const
virtual bool	HasBatchMap () const
virtual FaceBufferRef	BatchMap (int start_face, int end_face) const
Public Member Functions inherited from CollectInterface
virtual	~CollectInterface ()
virtual int	NumBlocks () const
virtual void	FirstFrame ()

Constructor & Destructor Documentation

ForwardFaceCollection()

ForwardFaceCollection::ForwardFaceCollection ( FaceCollection & coll )

inline

Member Function Documentation

Attrib()

virtual float ForwardFaceCollection::Attrib ( int face, int point, int id ) const

inlinevirtual

Implements FaceCollection.

Reimplemented in CutFaces, FaceCollectionCutter, FilterInvisible, FixVertexOrder, FlipNormals, FlipPolygonOrder, LodChoose, LodSet, MemoizeFaces, QuadsToTris2, ShadowMap, and SplitQuads.

AttribI()

virtual int ForwardFaceCollection::AttribI ( int face, int point, int id ) const

inlinevirtual

Implements FaceCollection.

Reimplemented in CutFaces, FaceCollectionCutter, FilterInvisible, FixVertexOrder, FlipNormals, FlipPolygonOrder, LodChoose, LodSet, MemoizeFaces, QuadsToTris2, ShadowMap, and SplitQuads.

Here is the caller graph for this function:

Collect()

void ForwardFaceCollection::Collect ( CollectVisitor & vis )

inlinevirtual

Implements FaceCollection.

Reimplemented in GradientColor, LodChoose, LodSet, MatrixElem44, MatrixElem, MaxColorFaceColl, MemoizeFaces, MeshResize, MinColorFaceColl, MixColorFaceColl, MixMesh, NormalDarkness, NormalToTexCoord, PublishFaceCount, QuadsToTris2, ReplaceTexture, ResizeFaceCollection, ResizeFaceCollection_g, ShadowMap, SmoothNormals2, SphericalWave, SphNormals, SplitQuads, TexCoord_subarea, TexCoordFromNormal2, TexCoordFromNormal, TexCoordPlane, TexCoordSpherical2, TextureStorage, ToonOutlineFaceCollection, and TowardsNormal.

Here is the caller graph for this function:

Color()

virtual unsigned int ForwardFaceCollection::Color ( int face, int point ) const

inlinevirtual

Implements FaceCollection.

Reimplemented in AmbientOcculsion, ColorAlpha, ColorDistance3, ColorElem2, ColorFromNormals, ColorFromTexcoord, ColorGrayScale, ColorRangeFaceCollection, CutFaces, FaceCollectionCutter, FilterInvisible, FixVertexOrder, FlipPolygonOrder, GradientColor, Lambert, LodChoose, LodSet, MaxColorFaceColl, MemoizeFaces, MinColorFaceColl, MixColorFaceColl, NormalDarkness, QuadsToTris2, ShadowMap, and SplitQuads.

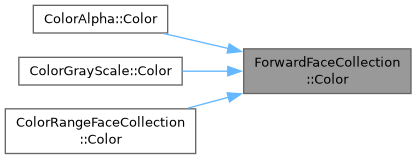

Here is the caller graph for this function:

EndFacePoint()

virtual Point ForwardFaceCollection::EndFacePoint ( int face, int point ) const

inlinevirtual

Reimplemented from FaceCollection.

Reimplemented in AnimFaceCollection, ChangePos, InterpolateMeshPair, MatrixElem44, MatrixElem, MemoizeFaces, and SplitQuads.

Here is the caller graph for this function:

FacePoint()

virtual Point ForwardFaceCollection::FacePoint ( int face, int point ) const

inlinevirtual

Implements FaceCollection.

Reimplemented in BuildOffsets, ChangePoints2, ChangePoints, ChangePos, CutFaces, DeformFaceCollection, FaceCollectionCutter, FilterInvisible, FixVertexOrder, FlipNormals, FlipPolygonOrder, HeightField_p, InterpolateMeshPair, InverseOutlineFaces, LodChoose, LodSet, MatrixElem44, MatrixElem, MemoizeFaces, MeshResize, MixMesh, MultiplyFaceCollection, QuadsToTris2, ReflectFaceCollection, ResizeFaceCollection, ResizeFaceCollection_g, ShadowFaceCollection, ShadowMap, SphericalWave, SplitQuads, ToonOutlineFaceCollection, TowardsNormal, TransFaceCollection, XSplit, YSplit, and ZSplit.

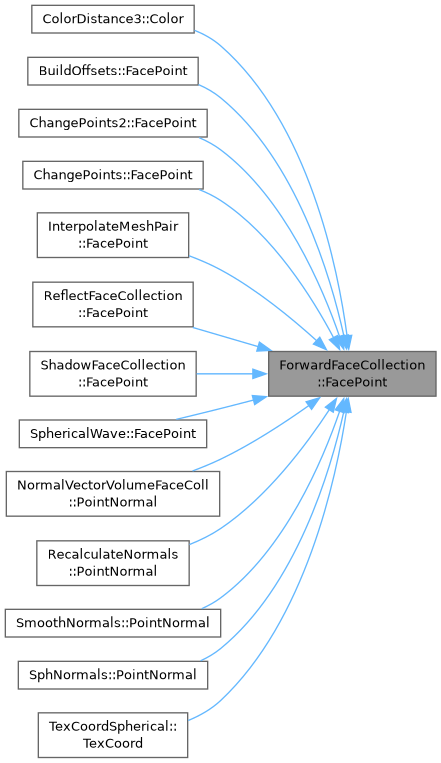

Here is the caller graph for this function:

FaceTexture()

virtual int ForwardFaceCollection::FaceTexture ( int face ) const

inlinevirtual

Reimplemented from FaceCollection.

Reimplemented in MemoizeFaces, ReplaceTexture, and TextureStorage.

GenTexture()

virtual void ForwardFaceCollection::GenTexture ( int num )

inlinevirtual

Reimplemented from FaceCollection.

Reimplemented in CombineTextures, MemoizeFaces, ReplaceTexture, and TextureStorage.

GetBoundingBox()

BBOX ForwardFaceCollection::GetBoundingBox ( bool & success ) const

inlinevirtual

Reimplemented from FaceCollection.

Reimplemented in MatrixElem.

GetObject()

virtual std::pair< int, int > ForwardFaceCollection::GetObject ( int o ) const

inlinevirtual

Reimplemented from FaceCollection.

Reimplemented in FaceCollectionCutter.

has_attrib()

virtual bool ForwardFaceCollection::has_attrib ( ) const

inlinevirtual

Reimplemented from FaceCollection.

Reimplemented in QuadsToTris2.

has_color()

virtual bool ForwardFaceCollection::has_color ( ) const

inlinevirtual

Reimplemented from FaceCollection.

Reimplemented in ColorAlpha, ColorDistance3, ColorElem2, ColorFromNormals, ColorFromTexcoord, ColorGrayScale, ColorRangeFaceCollection, Lambert, and QuadsToTris2.

has_normal()

virtual bool ForwardFaceCollection::has_normal ( ) const

inlinevirtual

Reimplemented from FaceCollection.

Reimplemented in NormalFaceCollection, QuadsToTris2, RecalculateNormals, SmoothNormals2, and SphNormals.

has_skeleton()

virtual bool ForwardFaceCollection::has_skeleton ( ) const

inlinevirtual

Reimplemented from FaceCollection.

Reimplemented in QuadsToTris2.

has_texcoord()

virtual bool ForwardFaceCollection::has_texcoord ( ) const

inlinevirtual

Reimplemented from FaceCollection.

Reimplemented in ChooseTex, NormalToTexCoord, QuadsToTris2, TexCoordFromNormal2, TexCoordFromNormal, TexCoordManual, TexCoordPlane, TexCoordQuadFaceCollection, TexCoordSpherical2, TexCoordSpherical, TexFaceCollection, and TextureStorage.

HeavyPrepare()

void ForwardFaceCollection::HeavyPrepare ( )

inlinevirtual

Implements FaceCollection.

Reimplemented in GradientColor, LodChoose, LodSet, MatrixElem44, MatrixElem, MaxColorFaceColl, MemoizeFaces, MeshResize, MinColorFaceColl, MixColorFaceColl, MixMesh, NormalDarkness, NormalToTexCoord, PublishFaceCount, QuadsToTris2, ReplaceTexture, ResizeFaceCollection, ResizeFaceCollection_g, ShadowMap, SmoothNormals2, SphericalWave, SphNormals, SplitQuads, TexCoord_subarea, TexCoordFromNormal2, TexCoordFromNormal, TexCoordPlane, TexCoordSpherical2, TextureStorage, ToonOutlineFaceCollection, and TowardsNormal.

IsTransparent()

virtual bool ForwardFaceCollection::IsTransparent ( ) const

inlinevirtual

Reimplemented from FaceCollection.

Reimplemented in TransFaceCollection.

Joints()

virtual VEC4 ForwardFaceCollection::Joints ( int face, int point ) const

inlinevirtual

Reimplemented from FaceCollection.

Reimplemented in FaceCollectionCutter.

NumFaces()

virtual int ForwardFaceCollection::NumFaces ( ) const

inlinevirtual

Implements FaceCollection.

Reimplemented in CutFaces, FaceCollectionCutter, FilterInvisible, FixVertexOrder, FlipNormals, FlipPolygonOrder, LodChoose, LodSet, MatrixElem44, MatrixElem, MemoizeFaces, QuadsToTris2, ShadowMap, and SplitQuads.

Here is the caller graph for this function:

NumObjects()

virtual int ForwardFaceCollection::NumObjects ( ) const

inlinevirtual

Reimplemented from FaceCollection.

Reimplemented in FaceCollectionCutter.

NumPoints()

virtual int ForwardFaceCollection::NumPoints ( int face ) const

inlinevirtual

Implements FaceCollection.

Reimplemented in CutFaces, FaceCollectionCutter, FilterInvisible, FixVertexOrder, FlipNormals, FlipPolygonOrder, LodChoose, LodSet, MatrixElem44, MatrixElem, MemoizeFaces, QuadsToTris2, ShadowMap, and SplitQuads.

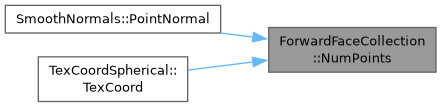

Here is the caller graph for this function:

NumTextures()

virtual int ForwardFaceCollection::NumTextures ( ) const

inlinevirtual

Reimplemented from FaceCollection.

Reimplemented in CombineTextures, MemoizeFaces, ReplaceTexture, and TextureStorage.

PointNormal()

virtual Vector ForwardFaceCollection::PointNormal ( int face, int point ) const

inlinevirtual

Implements FaceCollection.

Reimplemented in CutFaces, FaceCollectionCutter, FilterInvisible, FixVertexOrder, FlipNormals, FlipPolygonOrder, LodChoose, LodSet, MatrixElem44, MatrixElem, MemoizeFaces, NormalFaceCollection, NormalVectorVolumeFaceColl, QuadsToTris2, RecalculateNormals, ShadowMap, SmoothNormals2, SmoothNormals, SphNormals, and SplitQuads.

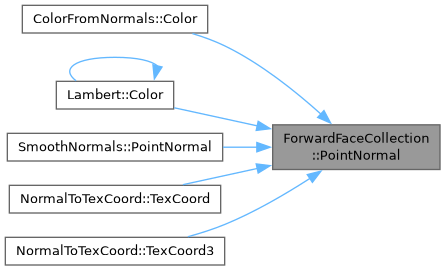

Here is the caller graph for this function:

Prepare()

virtual void ForwardFaceCollection::Prepare ( )

inlinevirtual

Implements FaceCollection.

Reimplemented in ColorElem2, CombineTextures, FilterInvisible, FixVertexOrder, LodChoose, LodSet, MatrixElem44, MatrixElem, MaxColorFaceColl, MemoizeFaces, MeshResize, MinColorFaceColl, MixColorFaceColl, PublishFaceCount, QuadsToTris2, ResizeFaceCollection, ResizeFaceCollection_g, ShadowMap, SmoothNormals2, SplitQuads, TexCoordPlane, TextureStorage, ToonOutlineFaceCollection, and TowardsNormal.

Here is the caller graph for this function:

PrepareDone()

virtual void ForwardFaceCollection::PrepareDone ( )

inlinevirtual

Reimplemented from FaceCollection.

Ready()

virtual bool ForwardFaceCollection::Ready ( ) const

inlinevirtual

Reimplemented from FaceCollection.

SetDoneCount()

virtual void ForwardFaceCollection::SetDoneCount ( int i )

inlinevirtual

Reimplemented from FaceCollection.

TexCoord()

virtual Point2d ForwardFaceCollection::TexCoord ( int face, int point ) const

inlinevirtual

Implements FaceCollection.

Reimplemented in CutFaces, FaceCollectionCutter, FilterInvisible, FixVertexOrder, FlipPolygonOrder, LodChoose, LodSet, MemoizeFaces, NormalToTexCoord, QuadsToTris2, ShadowMap, SplitQuads, TexCoord_subarea, TexCoordFromNormal2, TexCoordFromNormal, TexCoordManual, TexCoordPlane, TexCoordQuadFaceCollection, TexCoordSpherical2, TexCoordSpherical, TexFaceCollection, and TextureStorage.

Here is the caller graph for this function:

TexCoord3()

virtual float ForwardFaceCollection::TexCoord3 ( int face, int point ) const

inlinevirtual

Reimplemented from FaceCollection.

Reimplemented in ChooseTex, FaceCollectionCutter, FilterInvisible, FixVertexOrder, LodChoose, LodSet, NormalToTexCoord, ShadowMap, SplitQuads, TexCoordFromNormal2, and TextureStorage.

Here is the caller graph for this function:

TextureBuf()

virtual BufferRef ForwardFaceCollection::TextureBuf ( int num ) const

inlinevirtual

Reimplemented from FaceCollection.

Reimplemented in CombineTextures, MemoizeFaces, ReplaceTexture, and TextureStorage.

Weights()

virtual VEC4 ForwardFaceCollection::Weights ( int face, int point ) const

inlinevirtual

Reimplemented from FaceCollection.

Reimplemented in FaceCollectionCutter.

---

The documentation for this class was generated from the following file:

• Effect.hh
